Machineries
Strayfield

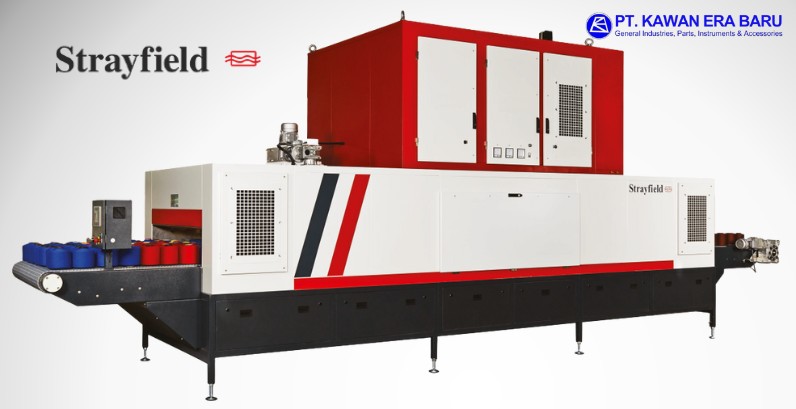

Conveyorised Dryer
Radio Frequency Drying Equipment for Textile and Non-Textile applications
Features
- Designed to dry a range of package and product types
- PLC control with fault diagnostics
- Highest quality finished product at optimum rates of production
- Flexible, precise and efficient at low rates of energy consumption
Conveyorised Dryer Technical Specification
| MODEL | SO-30 T | SO-65 TS | SO-110 TS | SO-200 TS |
| RF Power (kW) | 25 | 50 | 85 | 125 |
| Water Evaporation (Ltr/Hr) Approx. | 30 | 60 | 102 | 150 |
| Electrical Power (kW) | 50 | 86 | 140 | 208 |
| Unit Cooling | Forced Air | Water Cooled | Water Cooled | Water Cooled |
| Electrical Supply | Voltage 380-575 Volts (3 Phase, Customer Specified 50/60 Hz, Cos Ø 0.9 Stability ± 5%) | |||
| Conveyor Belt Width mm | 600 | 1400 | 1400 | 1400 |
| Steam Requirement | N.A. | 35 Kgs/Hr. @ 3.5 Bar | 45 Kgs/Hr. @ 3.5 Bar | 90 Kgs/Hr. @ 3.5 Bar |
| Machine Dimension (L) mm | 6890 | 7610 | 9385 | 11275 |
| Machine Dimension (B) mm | 1210 | 2200 | 2200 | 2200 |
| Machine Dimension (H) mm | 3120 | 3720 | 3720 | 3720 |
Strayfield RH Dryer for Food Processing Industry

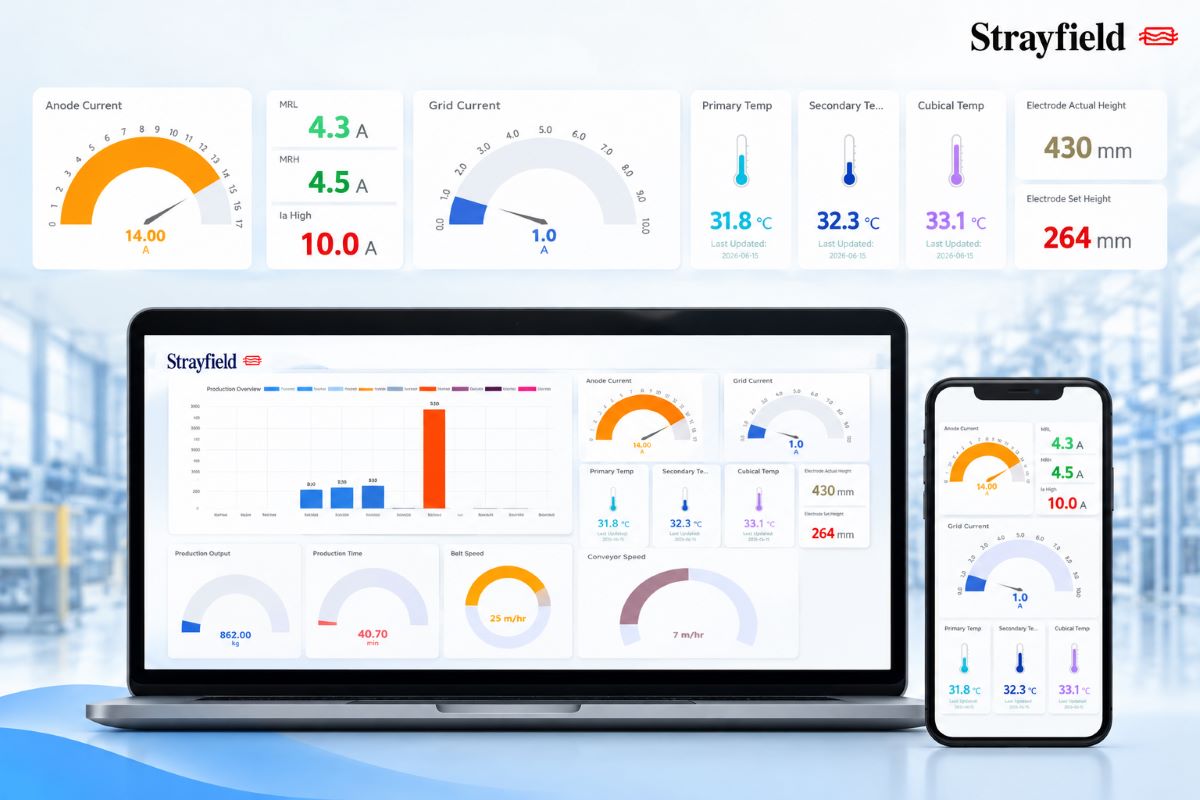

Strayfield Machine Insights Dashboard
Data is valuable—but visibility is what turns it into better decisions.
Strayfield Machine Insights helps manufacturers turn machine data into actionable insights for greater efficiency, reliability, and performance.
Get real-time visibility into:
- Production output and machine utilisation
- Downtime and breakdowns
- Process parameters and temperatures
- Alarms and critical events
- Historical production trends
Strayfield
Batch Dryer
The PS-12T Batch Dryer equipment offers a cost effective method of drying smaller textile batches. Designed to process all types of textile materials like fibre, hanks, muffs, tops, and yarn packages wound on S.S. dye springs, cones & cheese. The PS-12T features benefits of flexibility, precision and efficiency at low rates of electricity consumption similar to higher capacity conveyorised dryers. Monitored and controlled by a P.L.C. for high quality finished product at optimum production rates.
Batch Dryer Technical Specifications |
|
|
R F Power kW |
12 kW |
|
Frequency |
27.12 MHz |
|
Conversion Efficiency |
70% – 75% |
|
Unit Cooling |
Forced Air Cooled |
|
Electrical Supply |
410V 3ph 50Hz 0.9 Cosø |
|
Electrical Power |
24 kW Max |
|
Machine Dimensions (mm) |
W 1400 X L 2650 X H 2050 |
Lab Model
Suited for a wide range of textile products like Hanks, Muffs, Cones, Tops, Fibres & Cheeses. Ideal for Test Batches and Sampling Runs.
Technical Specifications |
|
|---|---|
| R F Power kW | 6 kW |
| Frequency | 27.12 MHz |
| Moisture Evaporation | 7.2 / kgs/Hr |
| Conversion Efficiency | 70% – 75% |
| Unit Cooling | Forced Air Cooled |
| Electrical Supply | 410V 3ph 50Hz 0.9 Cos |
| Electric Power | 11.5 Max |
| Machine Dimensions (mm) | W 2150 X L 3500 X H 2100 |
